This step shows you how to add the mounting holes to the adapt-r Premium plate. We supply the adapt-r Premium without holes, because every dishwasher is different. The mounting points are different for each dishwasher. Even different Siemens dishwashers have different mounting points. Make sure you check the pictures below to copy the mounting points. Please note! Always use the original mounting points of the dishwasher; see the installation manual of your dishwasher.

The dishwasher in our example has several options to attach a kitchen front. The adapt-r is attached to the original mounting points. Here, we have chosen to mount the adapt-r at the points indicated. Remove the screws at these points from the inside of the dishwasher door. If you can see through the dishwasher door behind this screw, you have a suitable point. In case of doubt, check the manual of your dishwasher or contact us.

We have chosen the points above because they are closest to the corner of the door. This in order to get as stable a result as possible.

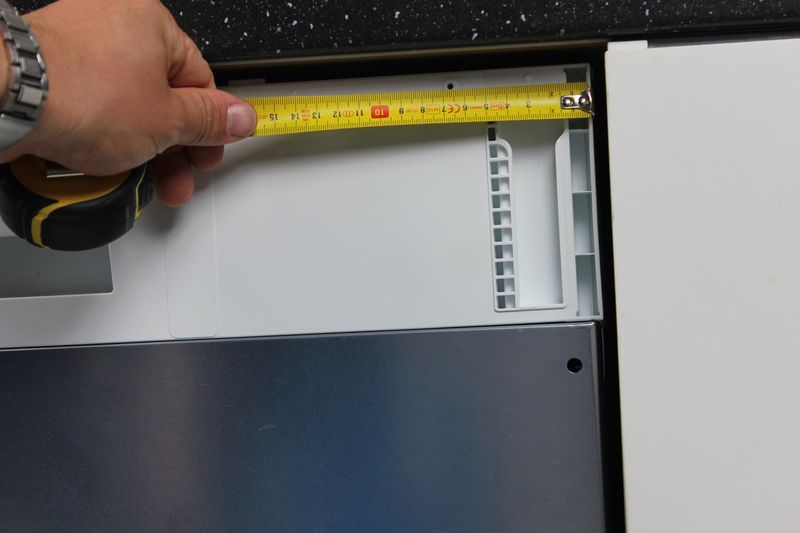

Point 1 is 6.7 cm away from the side edge, and about 1 cm from the top.

Mounting point 2 is 14.3 cm from the top, approx. 1.5 cm from the edge.

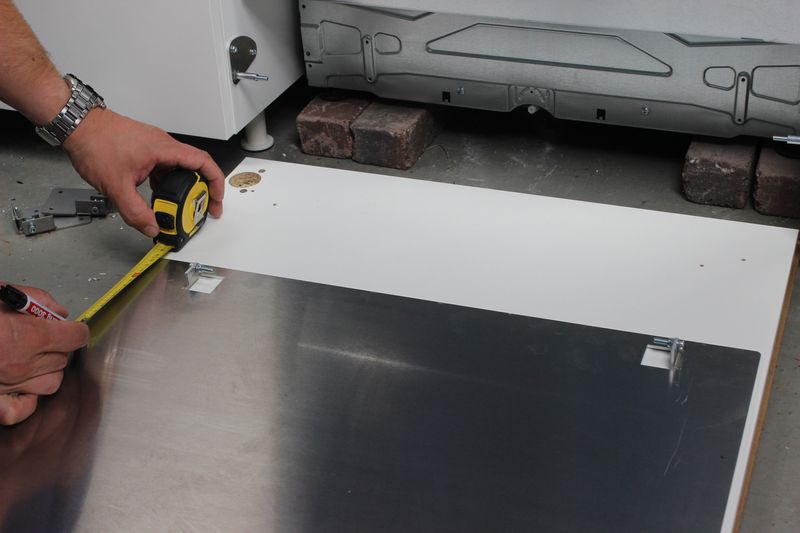

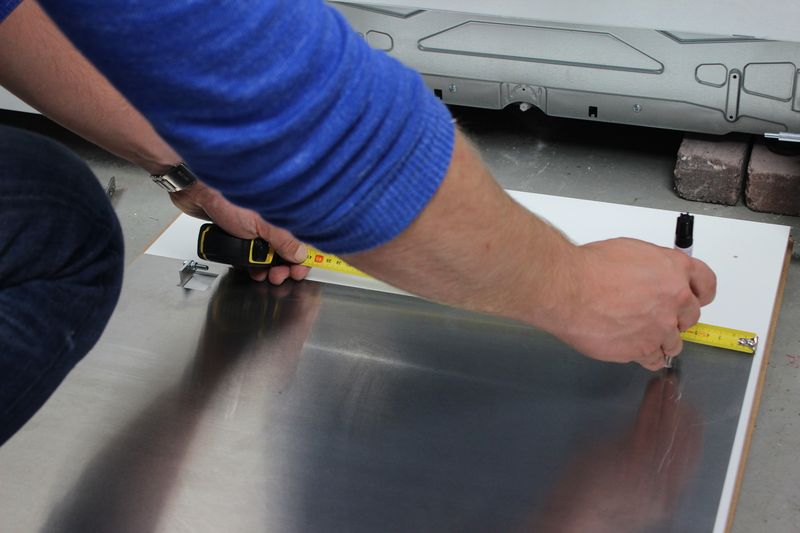

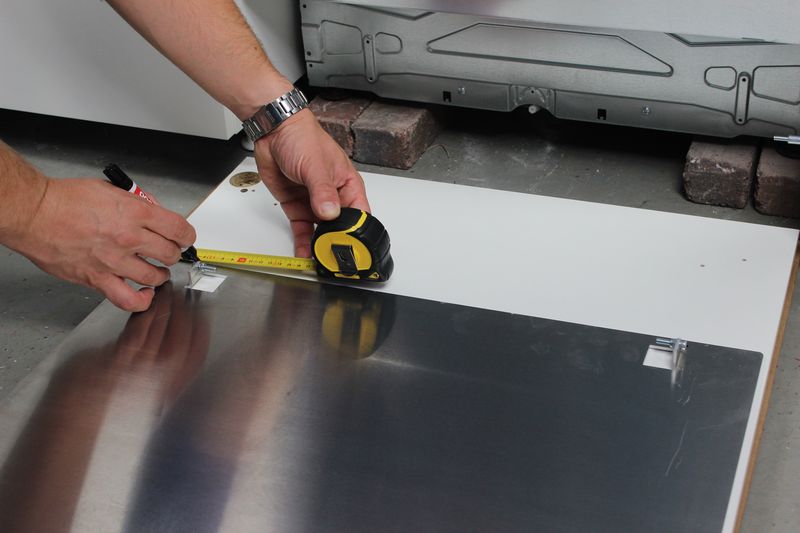

We then copy the points and mark them on the Premium plate.

Measure the points accurately.

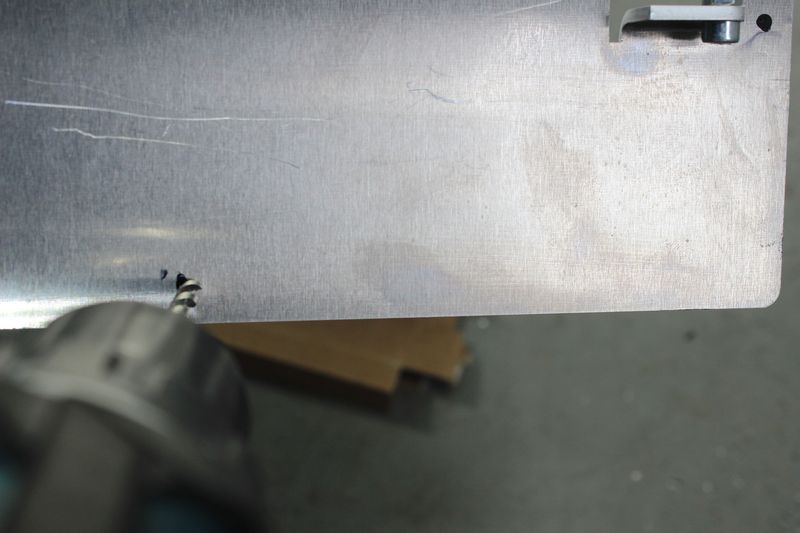

Drill the marked points with a 5mm metal drill bit.

The result now looks like this.

Please note that the location of the holes differs per dishwasher, so your result may look different.

Now mount the Premium plate onto the dishwasher door using the stainless steel screws supplied.
